PD Series

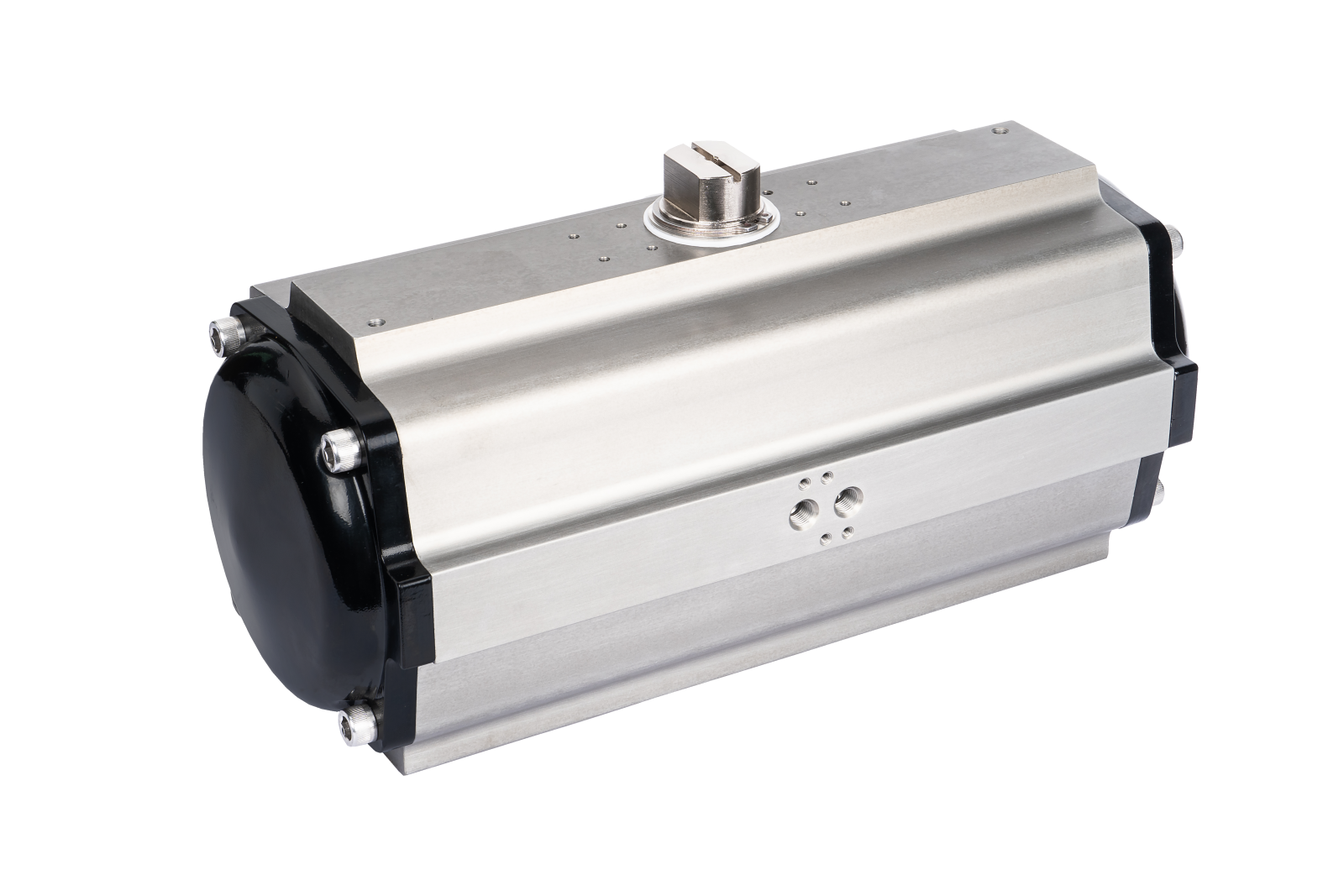

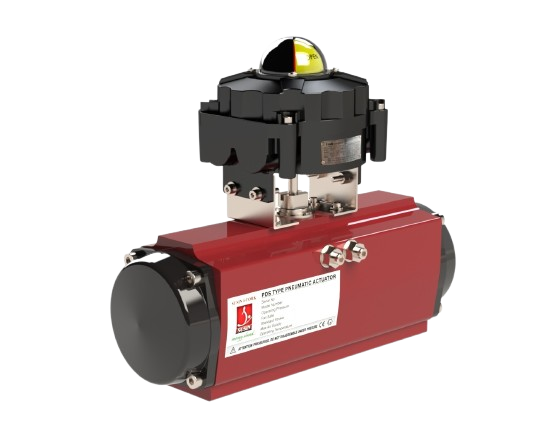

PD SeriesPDS (Pneumatic Double Acting Scotch Yoke) is an extruded anodized aluminium actuator designed for robust on/off applications. It utilizes a Scotch Yoke mechanism to deliver higher torque at both start and end positions, operated by an air source.
PD Series feature a one-piece body with a molded-in seat to increase the products pressure rating and ability to operate in higher velocity applications. The 3W/3L offers a high-strength through stem design utilizing an internal disc to stem connection to reduce hysteresis.The Series 3W/3L is engineered to provide bidirectional bubble-tight shutoff and isolation of the line media from the stem or valve body. Available in Buna-N and EPDM elastomers as well as Nylon Coated and stainless disc materials it offers a solid platform for a variety of applications. The ISO 5211 top flange allows for easy automation to pneumatic or electric actuation for on/off or modulation applications.
Features & Benefits
Optional Features and Specifications
Working Temperature Range
- Standard temperature: -20ºC to +80ºC
- High temperature: -10ºC to +140ºC
- Low temperature: -45ºC to +80ºC
- Extreme low: -55ºC to +80ºC
Note: For further temperature ranges below -55ºC, please consult the factory.
Corrosion Protection
Corrosion Category
- Standard: Hard anodized body and epoxy coated end caps
- Body: Hard anodized, thickness 25 - 30µm
- End-caps: Paint thickness 80 - 90µm
- Pinion material: Carbon steel with ENP layer
- Bolt and nuts: A2 (AISI 304)
Corrosion Category C4 Fully coated actuator
- Hard anodized + polyurethane (PU) paint, thickness 35µm
- Epoxy paint, thickness 80 - 90µm
- Pinion material: CS with ENP layer
- Bolt and nuts: A2 (AISI 304)
Corrosion Category C5-1 Fully polyurethane (PU) coated actuators
- Hard anodized + PU paint, thickness 35µm
- PU paint, thickness 80µm
- Pinion material: AISI 304
- Bolt and nuts: A2 (AISI 304)
Corrosion Category C5-M Fully polyurethane (PU) coated actuators
- Body: Hard anodized + PU paint, thickness 35µm
- End-caps: PU paint, thickness 80µm
- Pinion material: AISI 316
- Bolt and nuts: A4 (AISI 316)
Fully PTFE coated actuators
- Layer thickness: 15 - 20µm
- Pinion material: AISI 316
- Bolt and nuts:
Fully nickel plated (ENP) actuators
- Layer thickness body: 25 - 30µm (hard anodized + ENP)
- Layer thickness end caps: 80 - 90µm
- Pinion material: Carbon steel with ENP layer
- Bolt and nuts.
Fully stainless steel AISI 316 actuator
- Can be immersed in fresh water
- Pinion material.
